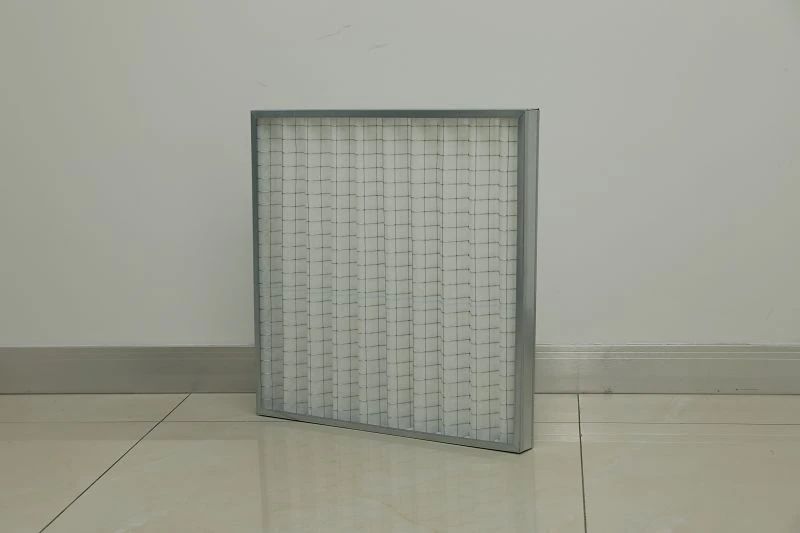

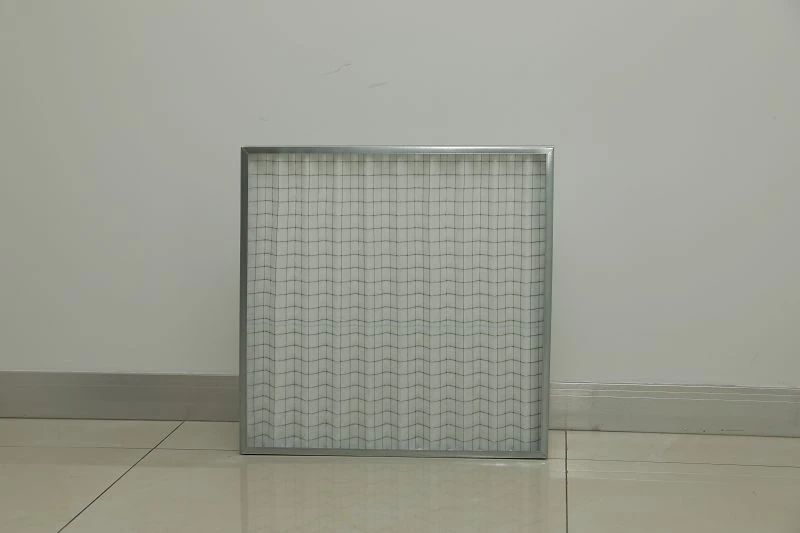

Pleated Pre-Filter Of Metal Frame

As a flagship product of Gate Purification, the Pleated Pre-Filter of Metal Frame is a primary air filtration device constructed with a metal-core structure. Recognized for its high-temperature resistance and strong durability, it serves as a core component in industrial and high-end cleanroom environments. You can confidently purchase the Pleated Pre-Filter of Metal Frame from Gate Purification, backed by our commitment to providing excellent after-sales service and timely delivery.

Send Inquiry

Product Introduction

The metal frame (e.g., aluminum alloy, galvanized steel) of Gate Purification's Pleated Pre-Filter of Metal Frame withstands high-temperature environments (ranging from 80 °C to 350 °C) and strongly acidic or alkaline gases. It is suitable for demanding working conditions such as paint spray booths and chemical production. Metal frames offer high resistance to deformation, minimal aging over long-term use, and are ideal for industrial systems with high airflow and pressure. Some models feature aluminum alloy frames weighing only 0.4–0.6 kg, balancing strength with installation convenience.

Product Parameters

Model	Dimensions (mm)	Airflow/Resistance (m³/h/Pa)	Efficiency Grade (EN779)
GFPR-24242-G4	592×592×46	3400/65	G4
GFPR-12242-G4	287×592×46	1700/65	G4
GFPR-24244-G4	592×592×96	3400/60	G4
GFPR-12244-G4	287×592×96	1700/60	G4

Note: Custom non-standard sizes are available upon request.

Product Features

Constructed with an aluminum alloy or stainless steel frame for robust and durable performance.

The pleated design significantly increases filtration area and reduces airflow resistance.

Low resistance and high airflow capacity improve energy efficiency, making it ideal for high-ventilation scenarios.

Washable and reusable, with long service life, high-temperature tolerance, and corrosion resistance.

Product Applications

Central Air Conditioning Systems: Installed at the air intake section of Air Handling Units (AHUs) to protect downstream high-efficiency filters.
Industrial Ventilation: Suitable for pre-filtration in high-dust environments such as welding workshops and spray painting lines.
Cleanroom Primary Filtration: Used in series with HEPA filters to extend their service life.
